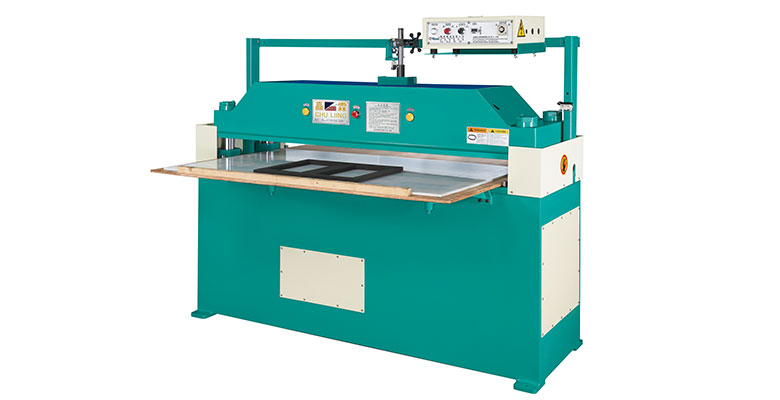

CSS-202B Precision Four-Column Plan Hydraulic Cutting Machine
CSS-202B
Precision Four-Column Plan Hydraulic Cutting Machine
VIDEO
Title Video Link
Precision Four-Column Plan Hydraulic Cutting Machine Precision Four-Column Plan Hydraulic Cutting Machine

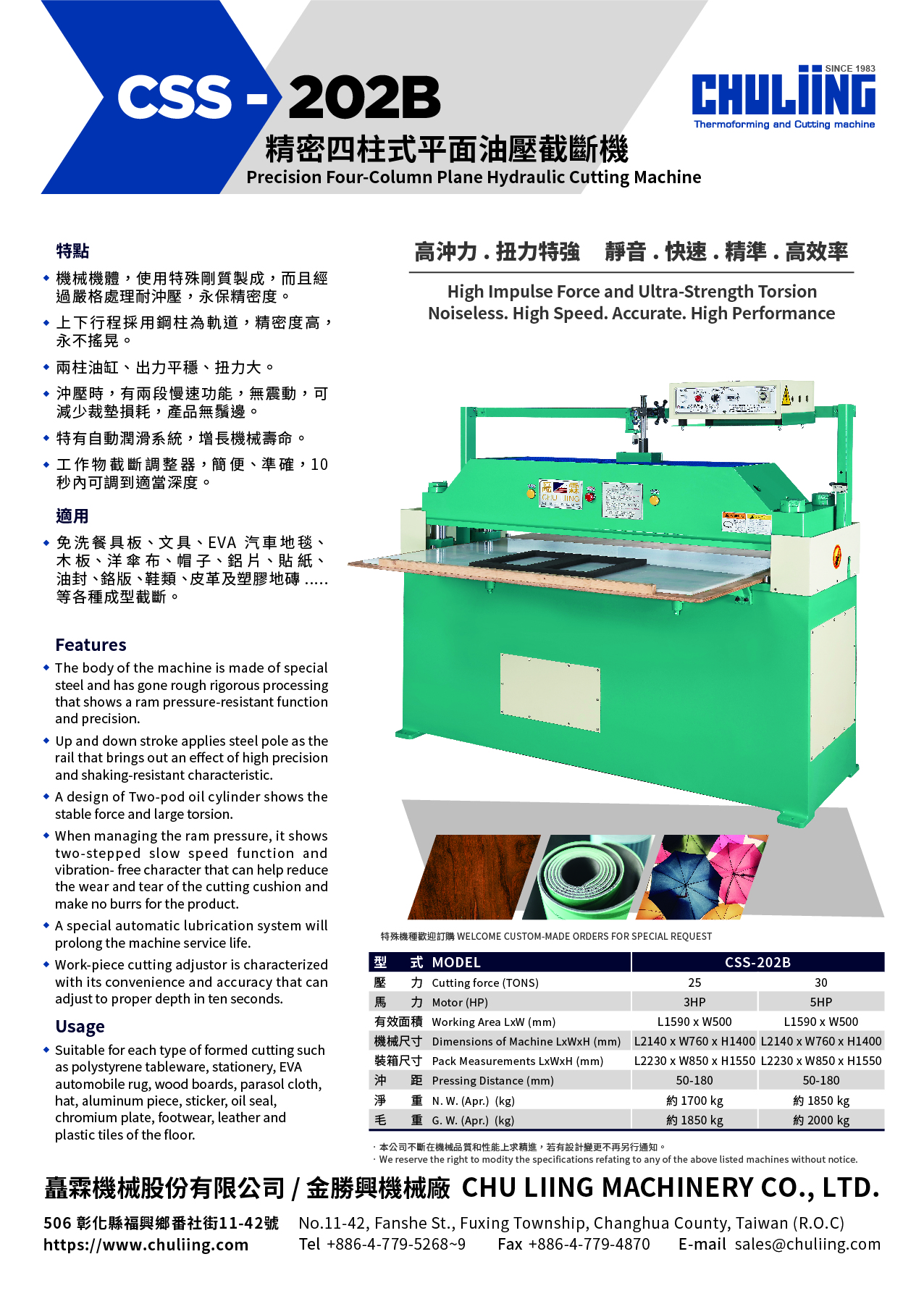

Electronic Catalog
Title Download Link
Precision Four-Column Plan Hydraulic Cutting Machine Precision Four-Column Plan Hydraulic Cutting Machine
FEATURES
    The body of the machine is made of special steel and has gone through rigorous processing that shows a ram pressure-resistant function and precision.
    Up and down stroke applies steel pole as the rail that brings out an effect of high precision and shaking-resistant characteristic.
    A design of Two-pod oil cylinder shows the stable force and large torsion.
    When managing the ram pressure, it shows two-stepped slow speed function and vibration- free character that can help reduce the wear and tear of the cutting cushion and make no burrs for the product.
    A special automatic lubrication system will prolong the machine service life.
    Work-piece cutting adjuster is characterized with its convenience and accuracy that can adjust to proper depth in ten seconds.
APPLICABLE MATERIAL
    Suitable for each type of formed cutting such as polystyrene tableware, stationery, EVA automobile rug, wood boards, parasol cloth, hat, sticker, oil seal, name plate, footwear, leather and plastic tiles of the floor.
SPECIFICATIONS
MODEL CSS-202B
Cutting force (TONS) 25 30
Motor (HP) 3HP 5HP
Working Area L x W (mm) L1590 x W500 L1590 x W500
Dimensions of Machine L x W x H (mm) L2140 x W760 x H1400 L2140 x W760 x H1400
Pack Measurements L x W x H (mm) L2230 x W850 x H1550 L2230 x W850 x H1550
Pressing Distance (mm) 50 - 180 50 - 180
N.W.(Apr.) (kg) 約 1700 kg 約 1850 kg
G.W.(Apr.) (kg) 約 1850 kg 約 2000 kg
※We welcome custom-made orders for special request.
※We reserve the right to modify the specifications of any of the above listed machines without notice.
