SL-1220 Continuous Thermoforming Machine
SL-1220
Continuous Thermoforming Machine
OTHER IMAGES Please click images to enlarge.

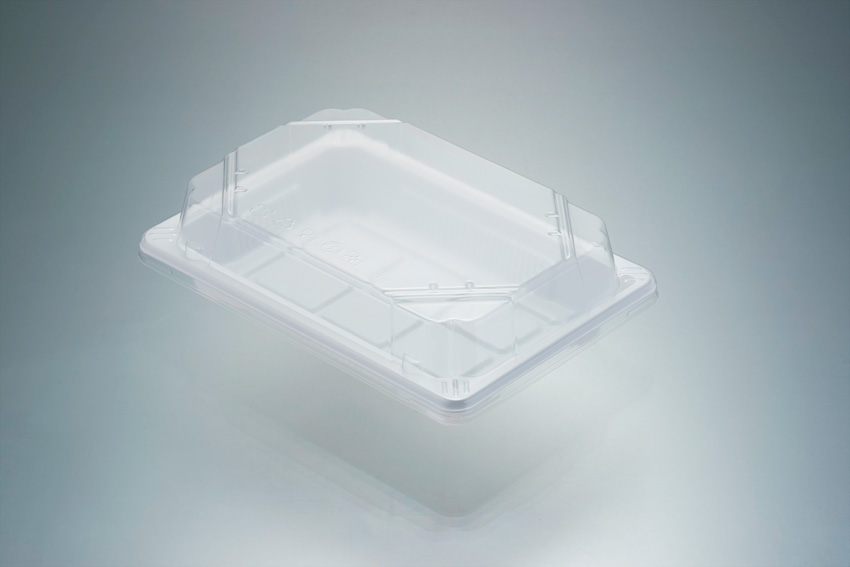

Finished Products Finished Products Finished Products Finished Products Finished Products Finished Products Finished Products Finished Products Finished Products
VIDEO
Title Link
SL 1220 Continuous Thermoforming Machine SL 1220 Continuous Thermoforming Machine
FEATURES
    High-rigidity design of machine bed:
  • Integral casting design combined with high-tension steel plate structure offers steady and low noise operation.
    4-column high-rigidity guide-rod mechanism:
  • guide-rods are made of top grade steel, offering high repetitivity of mold clamping in combination with the 4-column mold structure for steady forming.
    Servo chain feeding system:
  • Japanese chain operated by servo-controller ensures exact precision of high-speed feeding.
    Oven system with upper and lower heater elements:
  • automatic upper/lower engage/detach mechanism saves space and ensures exceptional safety for maintenance personnel as well as of the machine.
    Precision temperature control system:
  • independent temperature control with respective setting for each temperature zone, combined with high-speed transmission and control, offers precision adjustment and convenience for elevated yield.
    Innovative plus/minus pressure control circuitry:
  • precision control circuitry ensures accuracy and simple setting.
    Mold seat drive mechanism:
  • upper/lower clamping mechanism operated by servo-driven rod for precise positioning and high productivity.
    Automatic lubrication system:
  • automatic oil feed for slide parts, eliminating any part failure resulting from insufficient lubrication.
    High-level PLC control system:
  • offering quick algorithm for synchronized multi-axis servo-control; directly increases productivity and efficiency.
    HMI system:
  • latest model Siemens control system offers user-friendly operation interface and powerful functionality.
OPTIONAL FUNCTIONS
    Third-movement forming:
  • servo-drive mechanism to enable arbitrary positioning and travel corresponding to mold height.
    Rim pre-heating system:
  • pre-heating the material prior to material feeding, facilitating smooth operation of the subsequent process.
    Universal voltage:
  • any voltage is available when specified in advance.
    CE Certificate
    EU version with entire stainless steel system.
APPLICABLE MATERIAL
    Polystyrene (PS)
    Polypropylene (PP)
    Polyethylene (PE)
    APET
    EPS
    PLA
    HIPS
SPECIFICATIONS
Model SL-1220 SL-1220-1
Working Area 870mm × 1020mm 1135mm × 1020mm
Forming Height 150mm 150mm
Clamping Force 45tons 60tons
Max. Width of Material 950mm 1220mm
※We welcome custom-made orders for special request.
※We reserve the right to modify the specifications of any of the above listed machines without notice.
