RMD-800 European System Pressure Forming Machine (Forming, Cutting, Stacking  3 Station in One Machine)
RMD-800

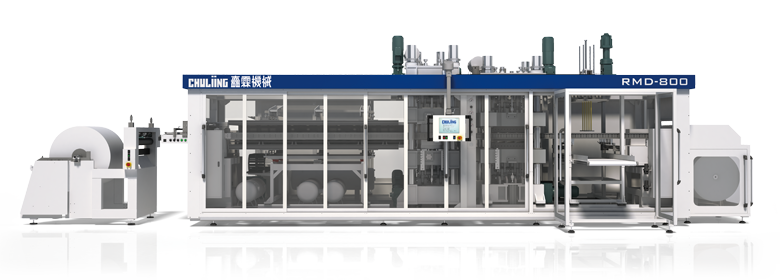

European System Pressure Forming Machine (Forming, Cutting, Stacking 3 Station in One Machine)
OTHER IMAGES Please click images to enlarge.

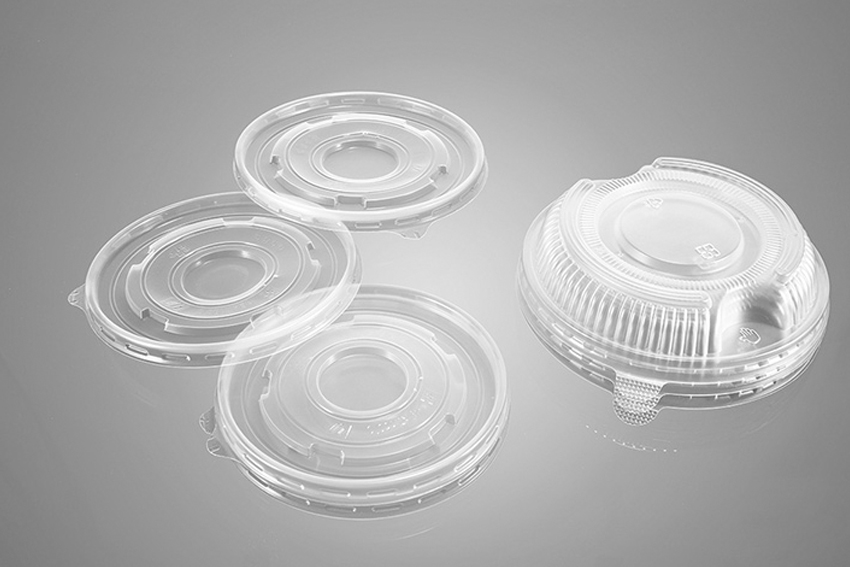

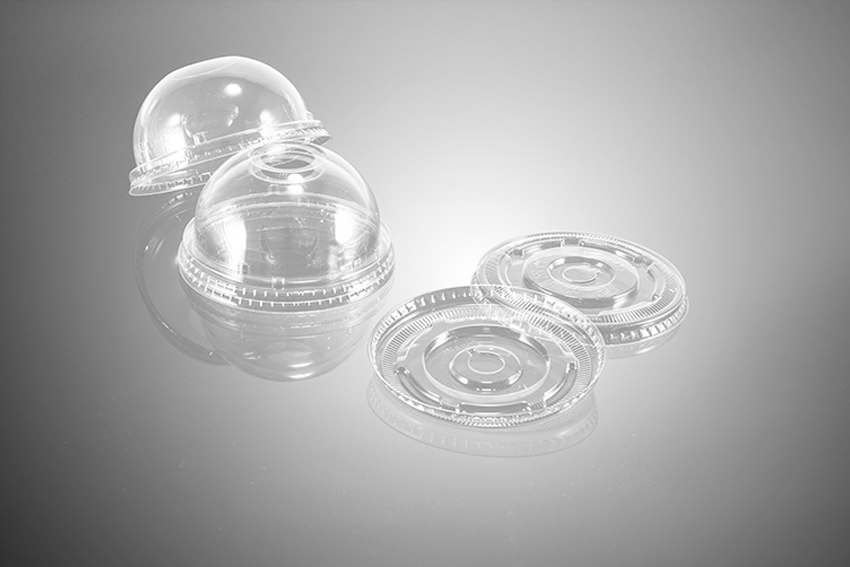

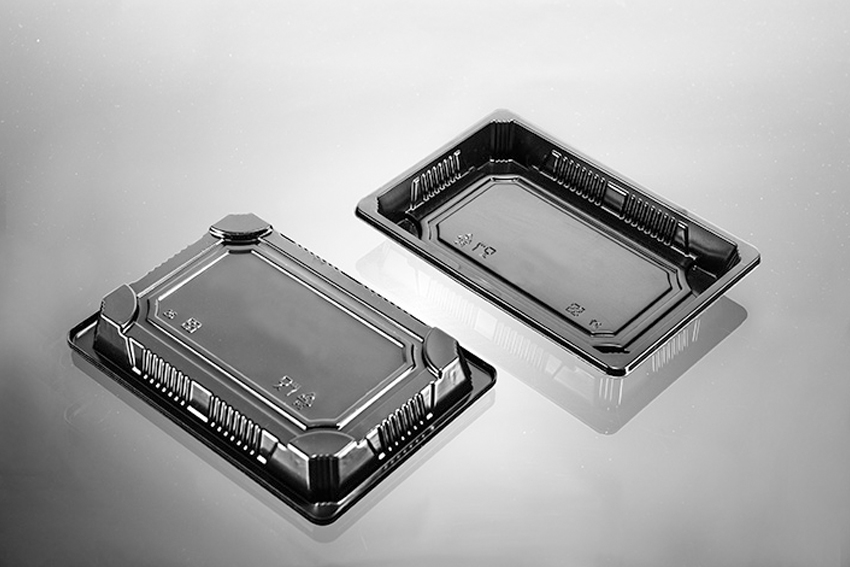

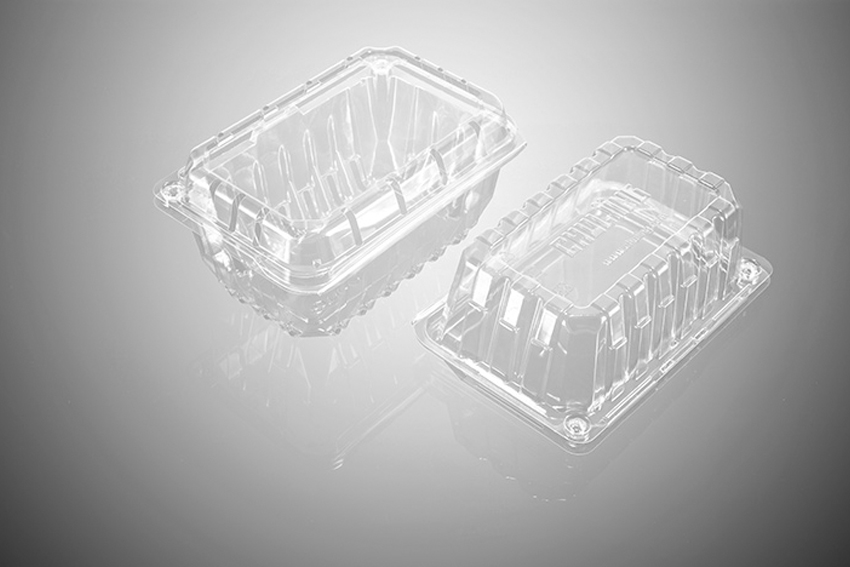

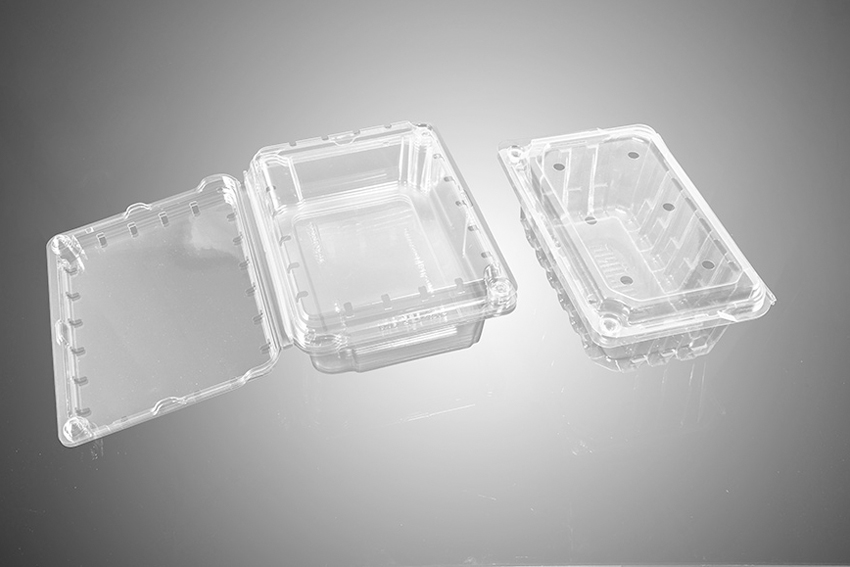

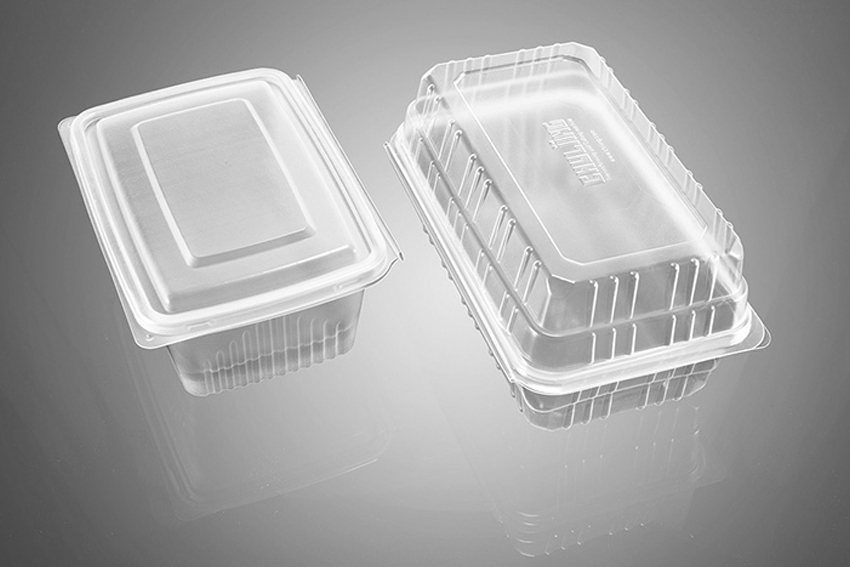

Plastic Cup Lid Various Plastic Container Plastic Lid Plastic Container Plastic Container Plastic Container
VIDEO
Title Video Link
European System Thermoforming Machine - RMD-800 European System Thermoforming Machine - RMD-800
European System Thermoforming Machine - RMD-800 (Plastic Container) European System Thermoforming Machine - RMD-800 (Plastic Container)
Electronic Catalog
Title Download Link
Lightweight, Intelligent 3 Station In One Automatic Thermoforming Machine RMD-800 Lightweight, Intelligent 3 Station In One Automatic Thermoforming Machine RMD-800
FEATURES
  • European design, intelligent control, lightweight.
  • Convenient mold change, quick, suitable for smaller quantities and diverse production line manufacturing.
  • High rate of movement, low failure rate, reducing the costs associated with machine errors.
  • Innovative intelligent system, which gives the operator an easy to use interactive interface which reduces the opportunity for human error.
  • Remote obstacle monitoring and instantaneous data processing allows rapid problem correction.
  • High-precision cutting technology, allowing high-speed control, low machinery wear and exceptional cutting performance.
  • Adjustable, automatic stacking technology, which remembers your last production needs.
APPLICABLE MATERIAL
    PS    (Polystyrene)
    PLA   (Poly Lactic Acid)
    ABS   (Acrylonitrile Butadiene Stryrene)
    PE     (Polyethylene)
    PET   (Polyethylene Terephthalate)
    PVC   (Polyvinyl Chloride)
    PP     (Polypropylene)
    HIPS  (High Impact Polystyrene)
    OPS   (Oriented Polystyrene)
    EPS   (Expandable Polystyrene)
    PSP... Other formable plastic sheet.
SPECIFICATIONS
Model RMD-800
Forming area mm max. 570×780
Forming pressure bar max. 6
Mold closing force DaN max. 35000
Cycle speed 1/min. max. 40
Dry cycle speed 1/min. max. 55
Feeding tolerance mm max. +/-0.2mm
Material thickness mm max. 1.8
Material width mm max. 810
min. 400
Roll diameter mm max. 1250
Roll weight kg max. 1100
Depth of draw mm max. 100
