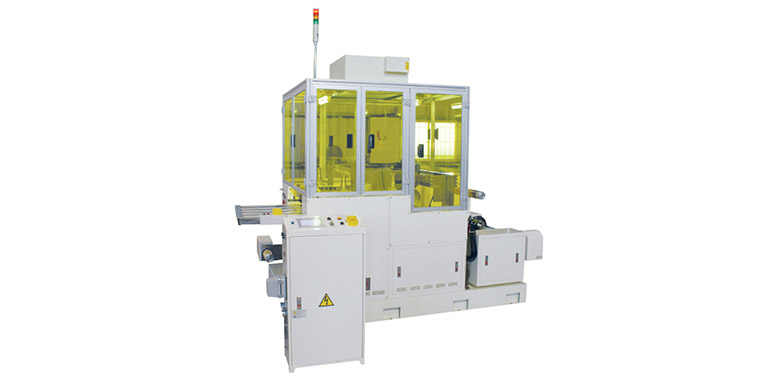

AFC-700SE Automatic Slitting Machine
AFC-700SE
Automatic Slitting Machine
Electronic Catalog
Title Download Link
Automatic Slitting Machine AFC-700SE Automatic Slitting Machine AFC-700SE
FEATURES
    Unique Material Moving Mechanism:
  • Designed according to the characteristics of photoelectric materials to avoid scratching the material.
    High-flexibility Parameter Setting:
  • The parameters required for slitting can be set by fine-tune method.
    Automatic Recovery Mechanism:
  • Collect the waste edge into rolls after slitting to minimize wasted space.
    High-accuracy Slitting Mechanism:
  • Adjusts according to the width required for the material.
    Servo Structure Flexibility:
  • High-accuracy synchronous control can be performed for the Feed System and Slitting System.
    Fully Automatic Tension Control:
  • Saves the time required for parameter setting, while enhancing the Yield Rate.
    Customization Flexibility:
  • Performs the customization work according to the actual requirement.
APPLICABLE MATERIAL
    All types of high-performance photoelectric films.
SPECIFICATIONS
MODEL AFC-700SE
Maximum 700mm
Cutting Efficiency 350mm/pcs/2.5sec
Motor (HP) 220V 60Hz 3P
Air Pressure Requirement 0.5Mpa
Weight of Main Unit 1500kg
※We welcome custom-made orders for special request.
※We reserve the right to modify the specifications of any of the above listed machines without notice.
