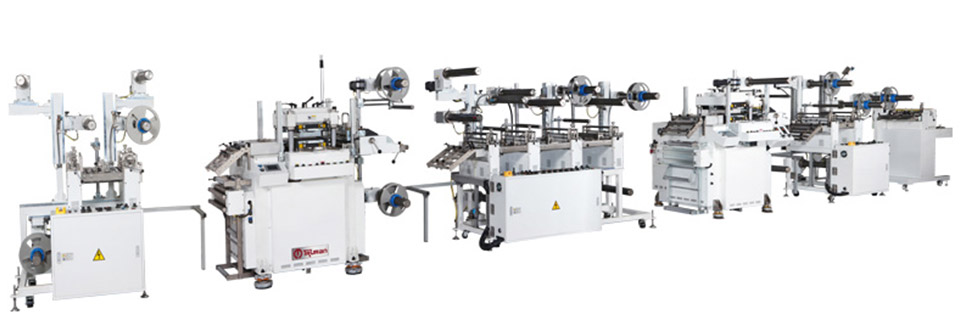

APL-300 High-accuracy Compact Auto-Cutting Production Line
APL-300
High-accuracy Compact Auto-Cutting Production Line
Electronic Catalog
Title Download Link
High-accuracy Compact Auto-Cutting Production Line APL-300 High-accuracy Compact Auto-Cutting Production Line APL-300
FEATURES
    Servo Cutting Mechanism:
  • The Main Cutting Axle is controlled by Servomotor to achieve high-efficiency and high-accuracy effects.
    Auto Feed Mechanism:
  • It is controlled by High-level Servo to achieve faster feeding speed and more accurate alignment.
    On-line with Multi-axle Auto Bonding Machine:
  • It is communicating with RAL-400 High-accuracy Auto Bonding Machine for carrying out synchronized operation.
    On-line with Auto Slicer:
  • It is communicated with AC-300 Compact Slicer for carrying out slicing operation.
    Secondary Processing Correspondence:
  • It corresponds with the alignment cutting operation between two stations.
APPLICABLE MATERIAL
    Various buffering material, light-shielding material, optical film and printing material, etc.
SPECIFICATIONS
MODEL APL-300
Maximum Width 300mm
Cutting Efficiency 200SPM
Motor (HP) 220V 60Hz 3P
Air Pressure Requirement 0.5Mpa
Weight of Main Unit 3000kg
※We welcome custom-made orders for special request.
※We reserve the right to modify the specifications of any of the above listed machines without notice.
