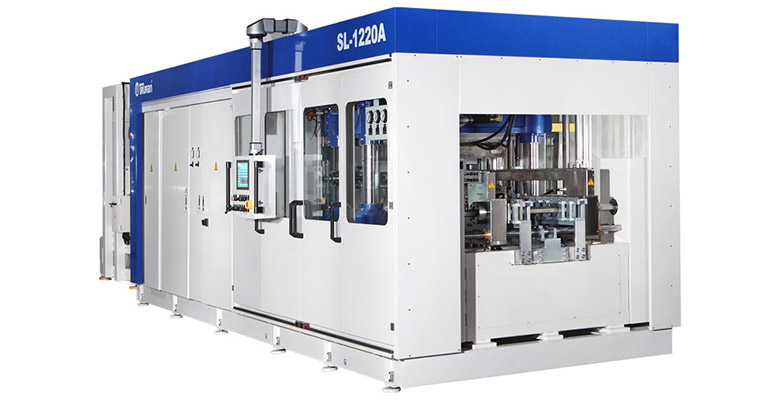

SL-1220A Continuous Thermoforming Machine
SL-1220A
Continuous Thermoforming Machine
OTHER IMAGES Please click images to enlarge.

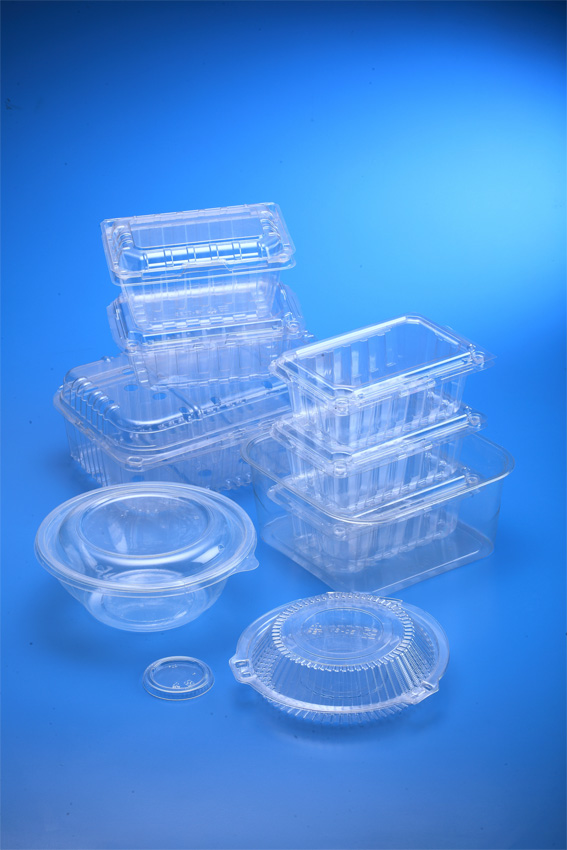

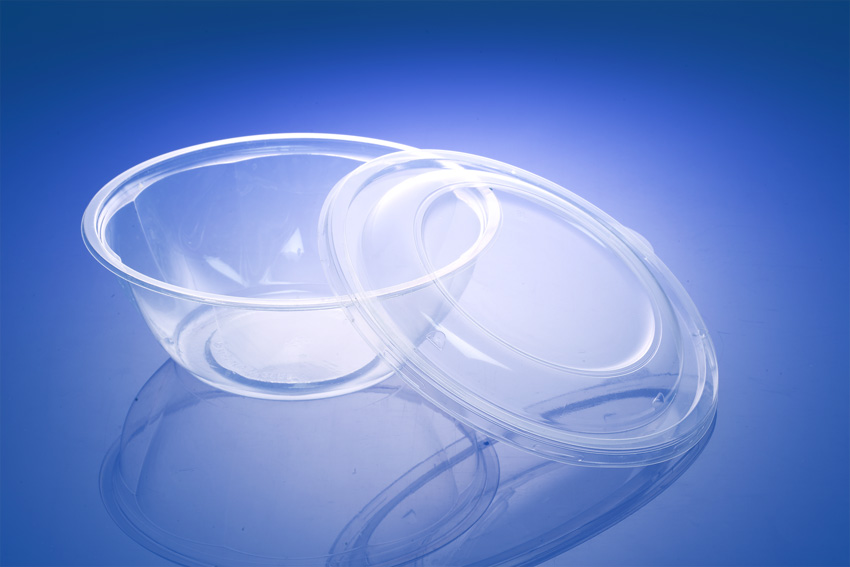

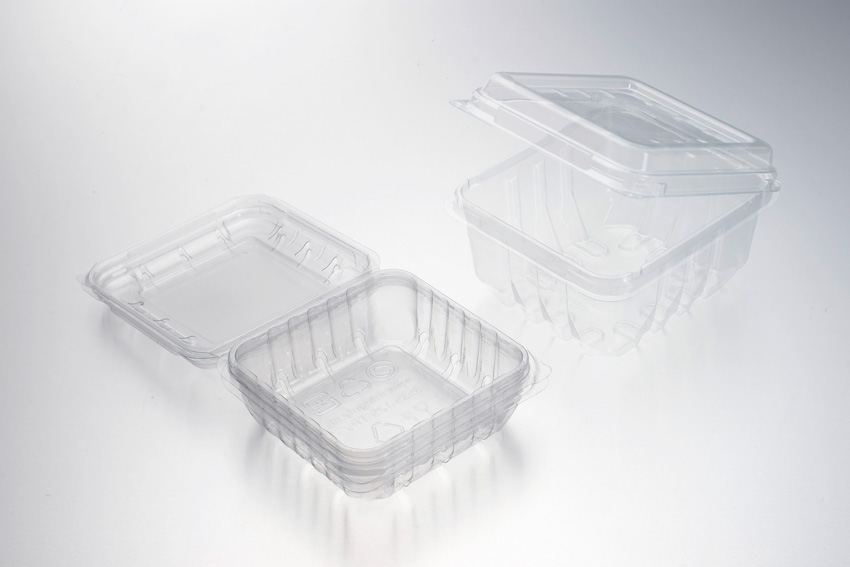

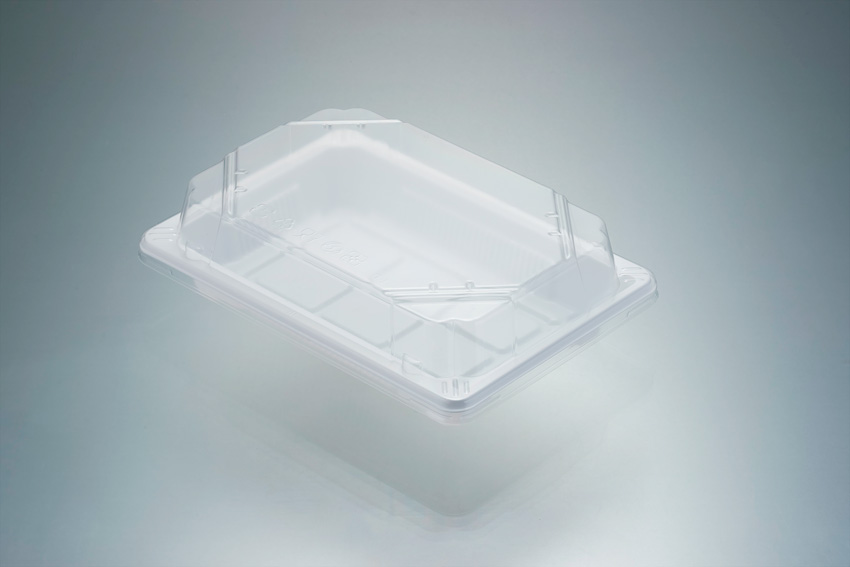

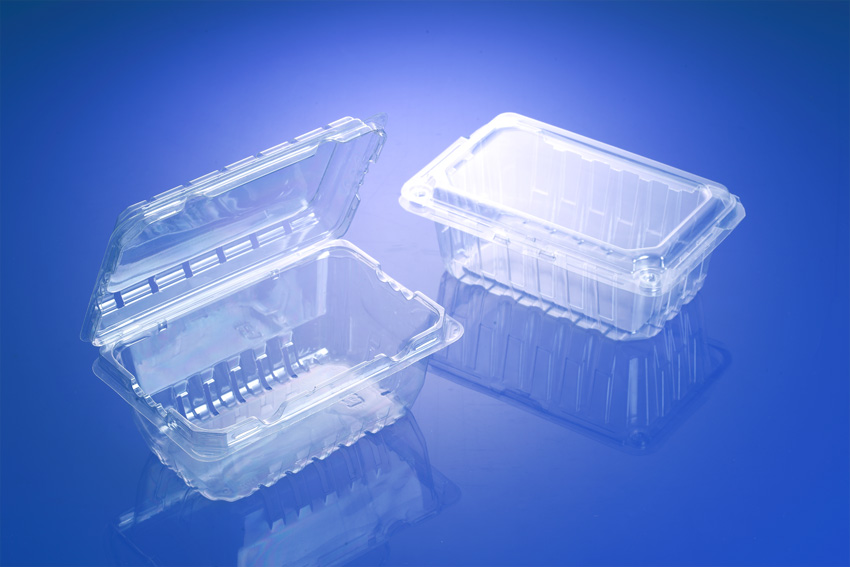

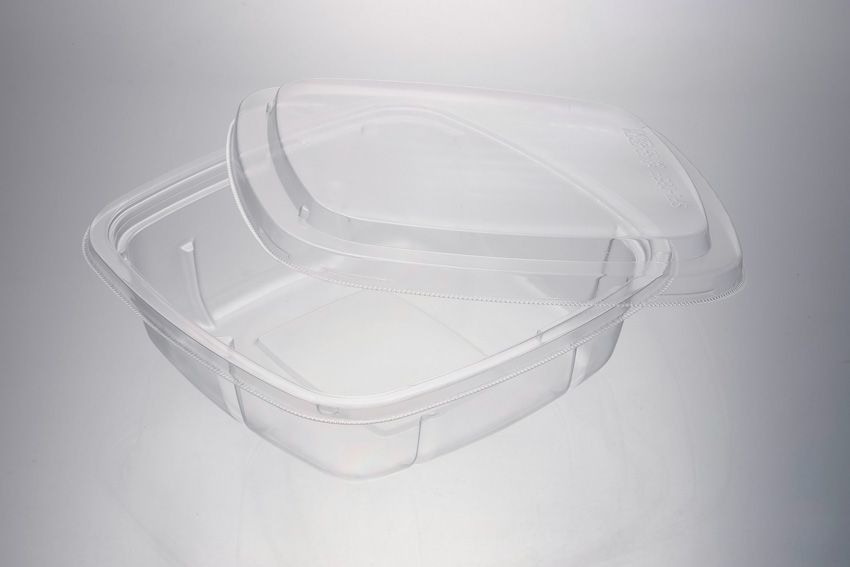

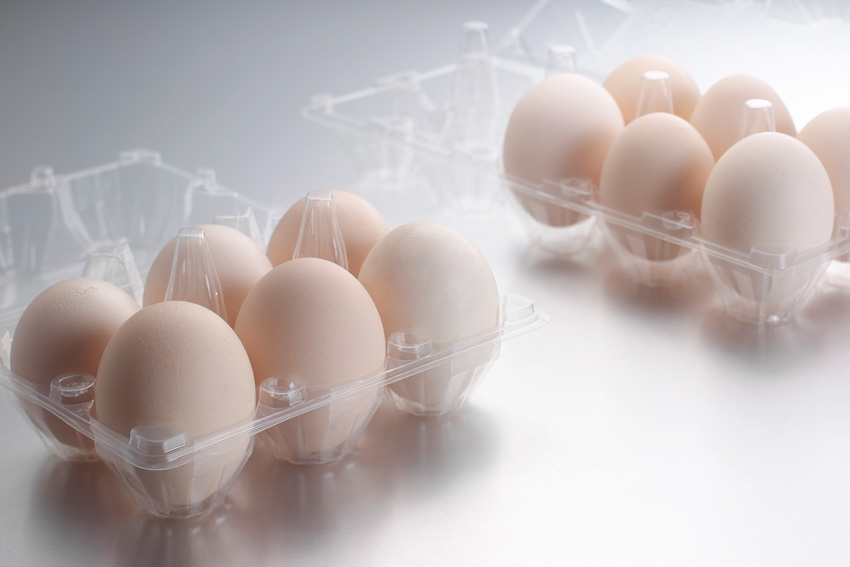

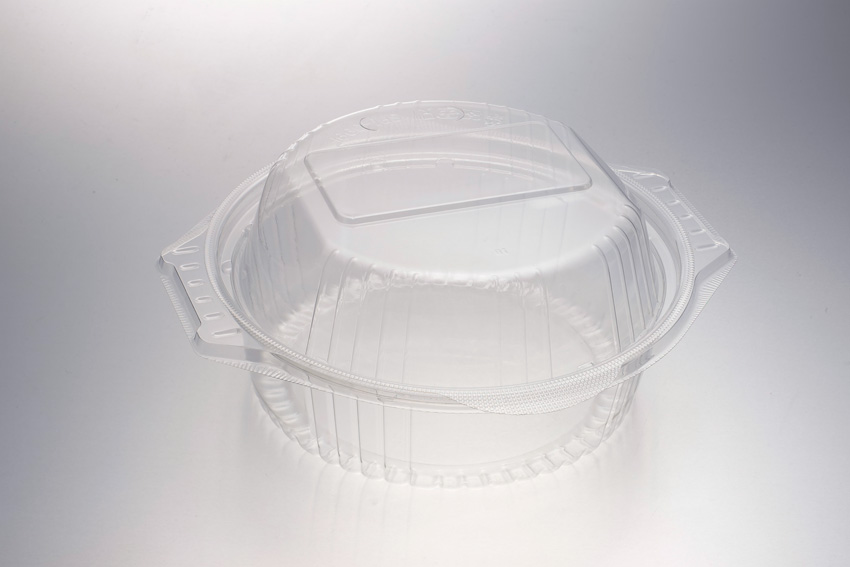

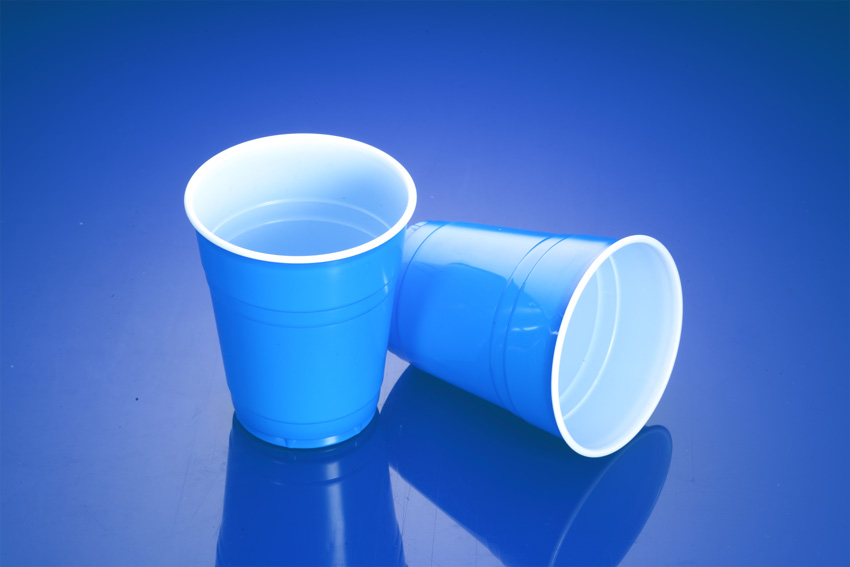

Egg Tray Egg Tray Fruit Container Salad Container Plastic Container Plastic Container Various Plastic Container Fruit Container Plastic Container Plastic Cup
VIDEO
Title Video Link
Continues Thermoforming Machine SL-1220A Continues Thermoforming Machine SL-1220A
Continues Thermoforming Machine SL-1220A ( Lid ) Continues Thermoforming Machine SL-1220A  ( Lid )
Continues Thermoforming Machine SL-1220A ( Fruit Container ) Continues Thermoforming Machine SL-1220A  ( Fruit Container )
Continues Thermoforming Machine SL-1220A ( Egg Tray ) Continues Thermoforming Machine SL-1220A ( Egg Tray )
Electronic Catalog
Title Download Link
High Capacity Automatic Thermoforming Machine SL-1220A + SL-520 High Capacity Automatic Thermoforming Machine SL-1220A + SL-520
Auto/Semi-Auto Thermoforming Solution Quick Guide SL-1220A + SL-520 Auto/Semi-Auto Thermoforming Solution Quick Guide SL-1220A + SL-520
FEATURES
    High-rigidity design of machine bed:
  • Integral casting design combined with high-tension steel plate structure offers steady and low noise operation.
    4-column high-rigidity guide-rod mechanism:
  • guide-rods are made of top grade steel, offering high repetitivity of mold clamping in combination with the 4-column mold structure for steady forming.
    Servo chain feeding system:
  • Japanese chain operated by servo-controller ensures exact precision of high-speed feeding.
    Precision Temperature Control System:
  • Independent temperature control with respective setting for each temperature zone, uses SSR with PID calculus for controlling the temperature, combined with high-speed transmission and control, offers precision adjustment and is convenience for elevated yield.
    Upper and Lower Heating Oven:
  • German made ceramic heater, temperature accuracy can be controlled very well.
    Automatic Lubrication System:
  • Automatic oil feed for slide parts, eliminating any failure resulting from insufficient lubrication.
production solutions
    Fully Automated System:
  • Pressure and Vacuum Forming SL-1220A →  Center perforation SL-520 → Dimension Cutting SL-520 → Automatic Stacking
    Fully Automated System:
  • Pressure and Vacuum Forming SL-1220A →  Dimension Cutting SL-520 → Automatic Stacking
    Semi-automated System:
  • Pressure and Vacuum Forming SL-1220A →  Automatic Cutting and Stacking Mechanism (SHEET) →  Hydraulic Cutting Machine CSS-806 → Manual Collection
APPLICABLE MATERIAL
    PS    (Polystyrene)
    PLA  (Poly Lactic Acid)
    ABS  (Acrylonitrile Butadiene Stryrene)
    PE    (Polyethylene)
    PET  (Polyethylene Terephthalate)
    PVC  (Polyvinyl Chloride)
    PP    (Polypropylene)
    HIPS (High Impact Polystyrene)
    OPS  (Oriented Polystyrene)
    EPS   (Expandable Polystyrene)
    PSP... Other formable plastic sheet.
SPECIFICATIONS
Model SL-1220A
Max Forming Area 1200 mm (Feeding direction) x 1000 mm (W)
Min Forming Area 840 mm (Feeding direction) x 600 mm (W)
Max. Forming Height 150 mm
Mold Close Force 84 tons
Sheet Thickness 0.2 - 2.0 mm
Machine Dimension (L) 8400 x (W) 3500 x (H) 3000 mm
Weight Approx. 17,500kg
