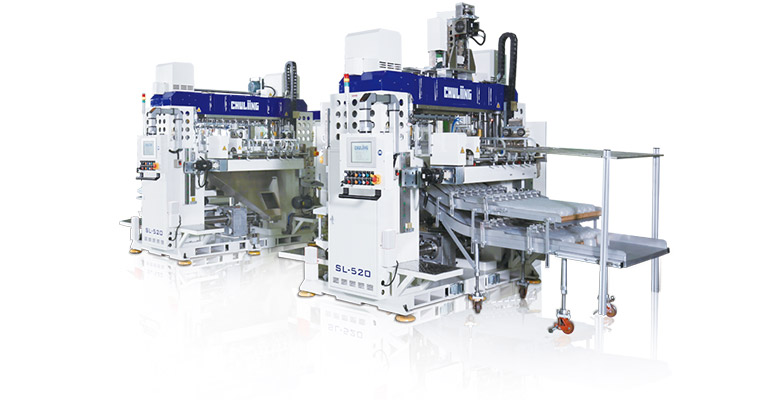

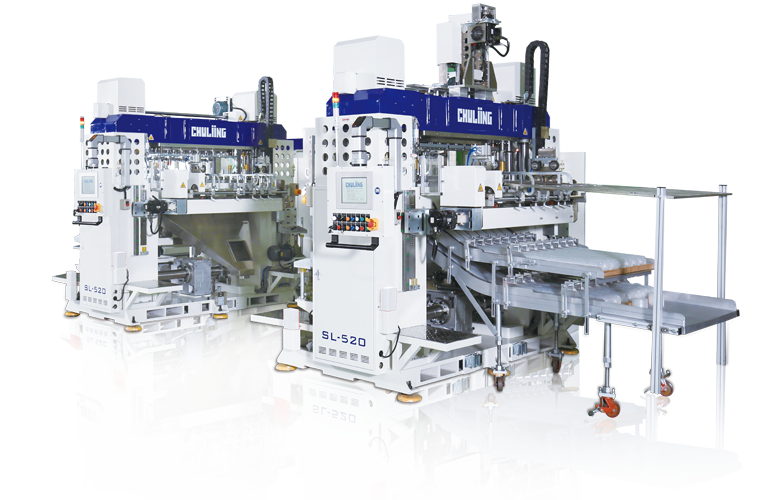

SL-520 Vertical Trimming Press
SL-520
Vertical Trimming Press
OTHER IMAGES Please click images to enlarge.

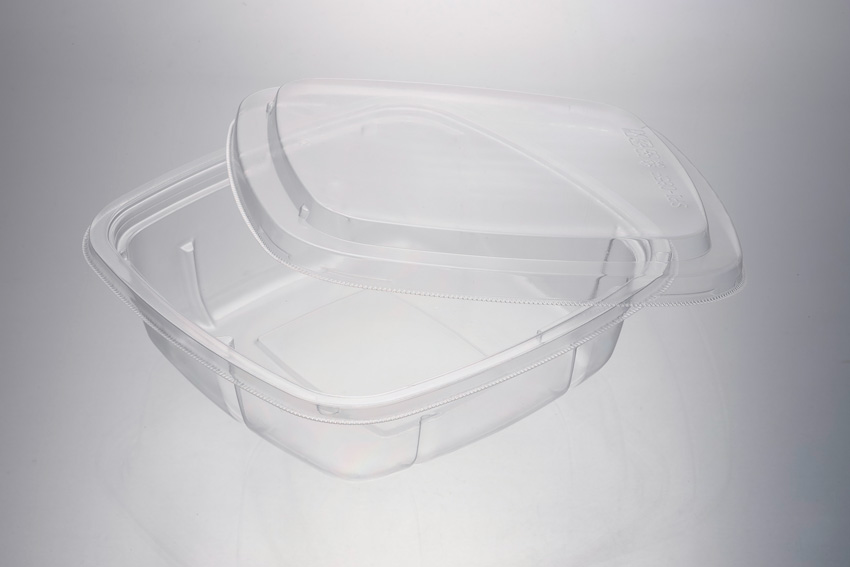

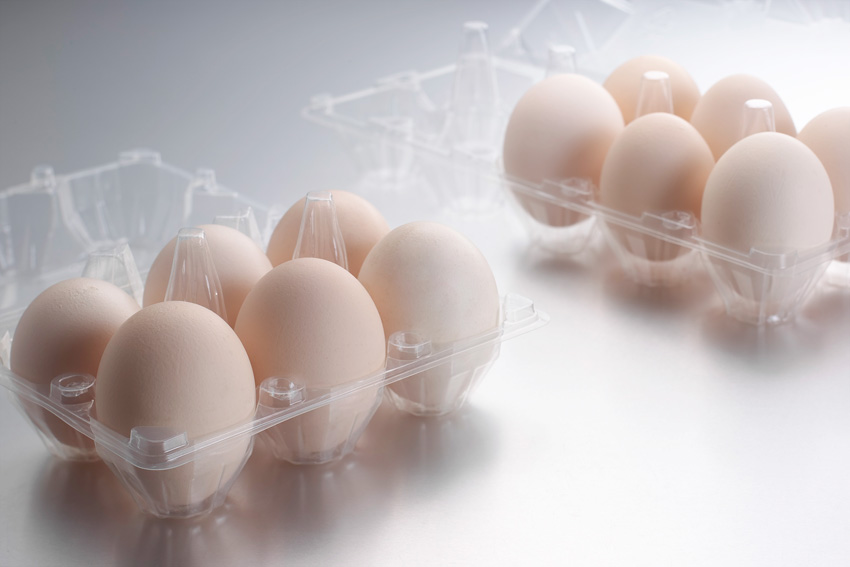

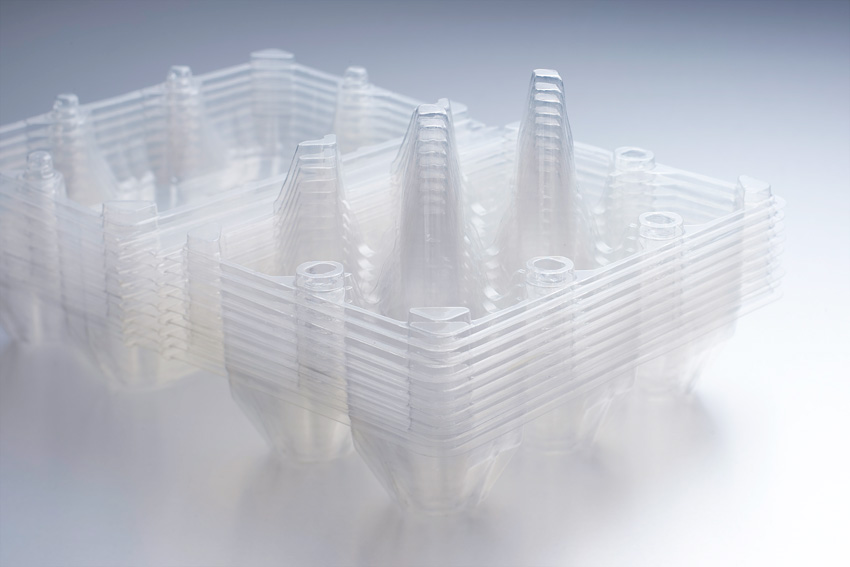

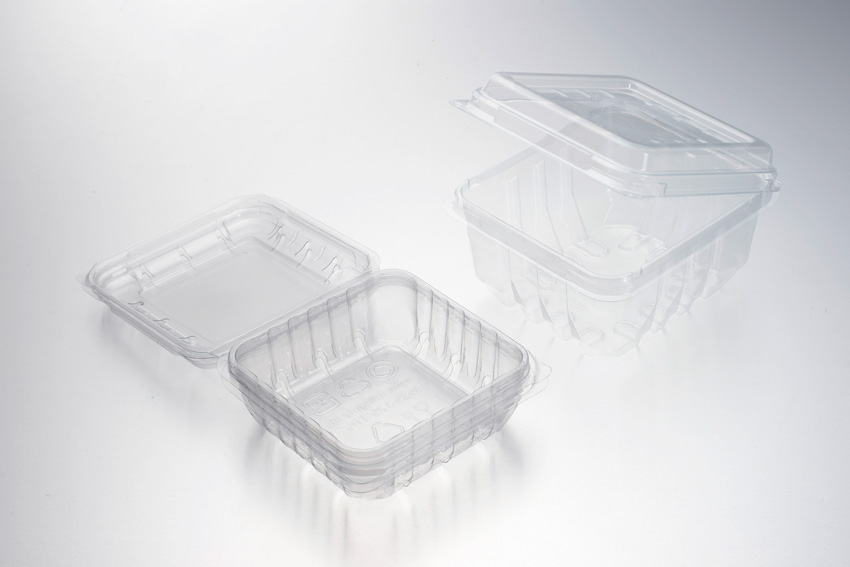

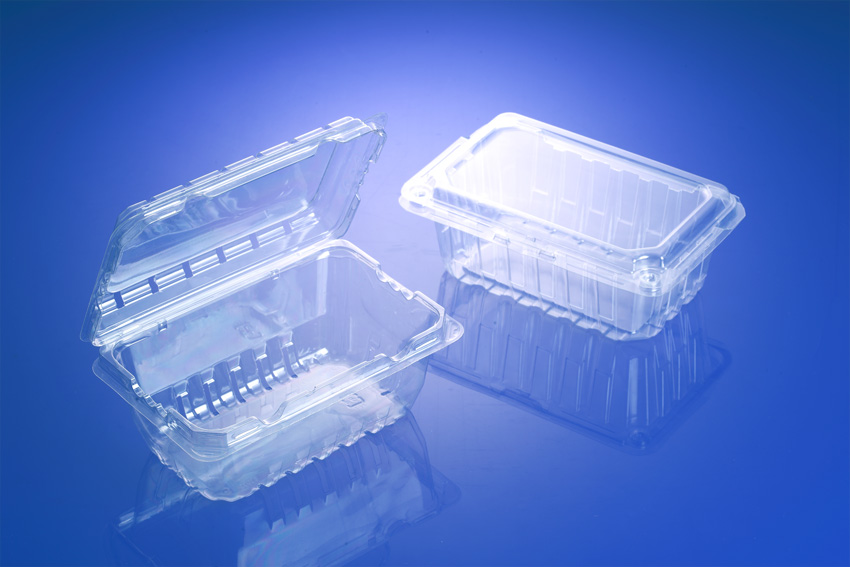

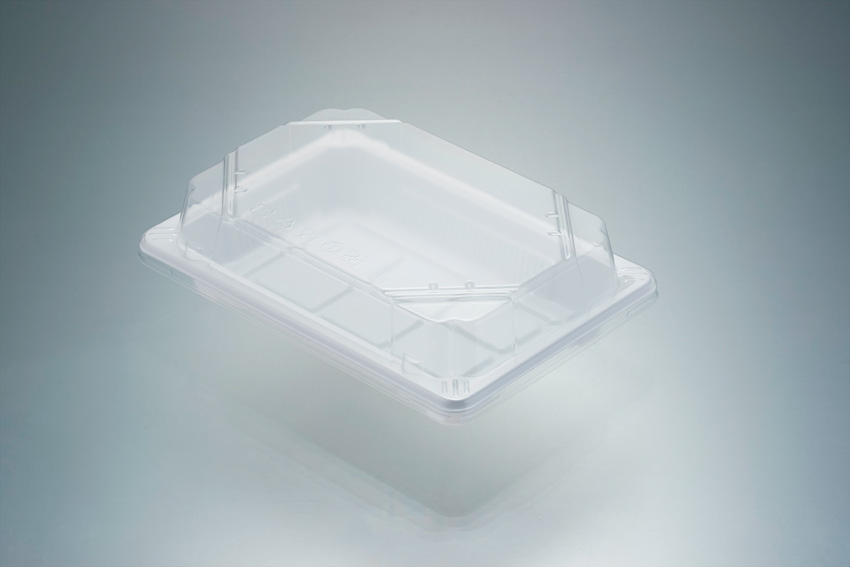

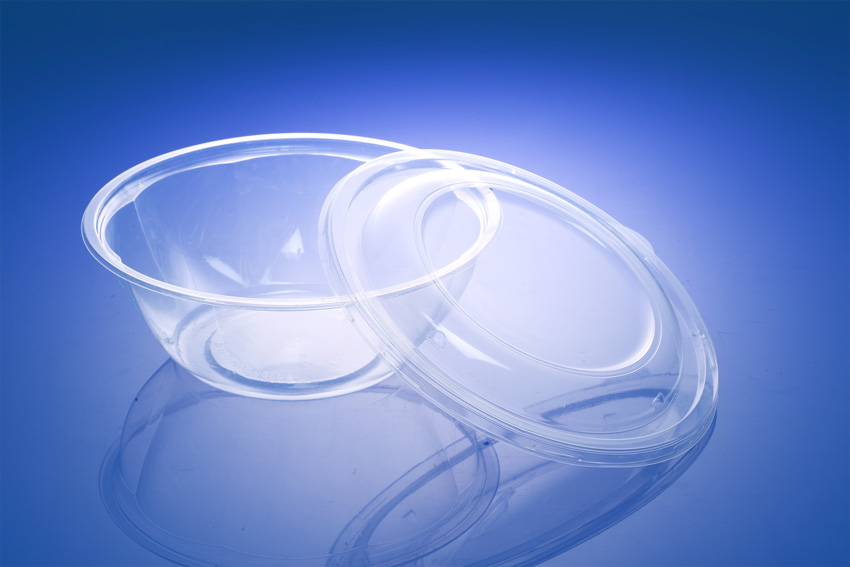

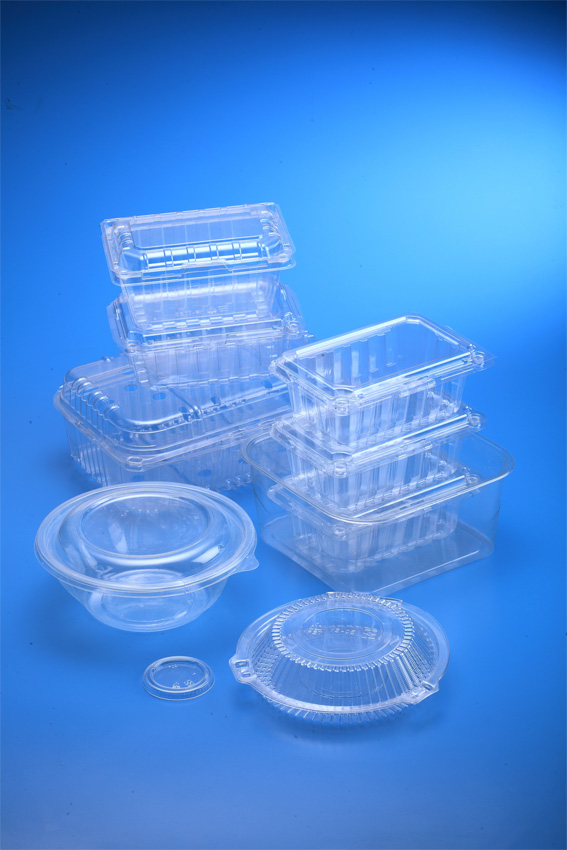

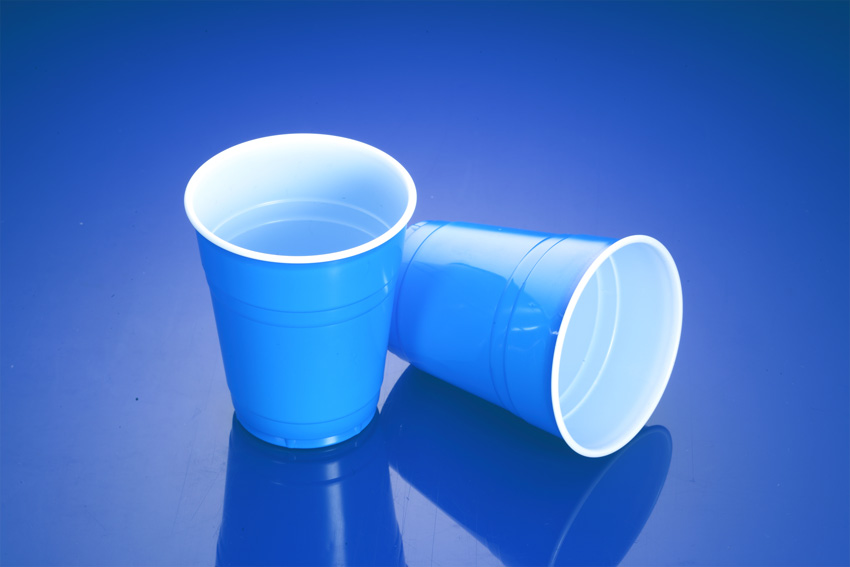

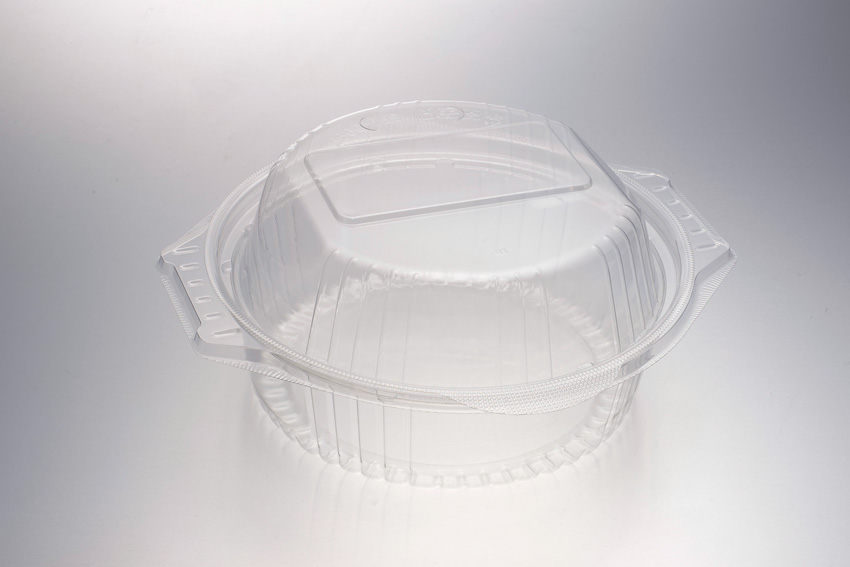

Egg Tray Egg Tray Fruit Container Salad Container Plastic Container Plastic Container Various Plastic Container Fruit Container Plastic Container Plastic Cup
VIDEO
Title Video Link
Thermoforming Production Line: Vertical Trimming Press SL-520 ( Lid ) Thermoforming Production Line: Vertical Trimming Press SL-520  ( Lid )
Thermoforming Production Line: Vertical Trimming Press SL-520 ( Fruit Container ) Thermoforming Production Line: Vertical Trimming Press SL-520  ( Fruit Container )
Thermoforming Production Line: Vertical Trimming Press SL-520 ( Egg Tray ) Thermoforming Production Line: Vertical Trimming Press SL-520 ( Egg Tray )
Electronic Catalog
Title Download Link
High Capacity Automatic Thermoforming Machine SL-1220A + SL-520 High Capacity Automatic Thermoforming Machine SL-1220A + SL-520
Auto/Semi-Auto Thermoforming Solution Quick Guide SL-1220A + SL-520 Auto/Semi-Auto Thermoforming Solution Quick Guide SL-1220A + SL-520
FEATURES
    High torque cam drive mechanism:
  • precision processed machine bed offers high accuracy and powerful cutting torque.
    Servo feed system:
  • servomotor driven steel feed roller offers precision positioning.
    Automatic stack/count function:
  • based on quantity setting, automated stacking and discharge functions effectively reduce manpower consumption.
    Automatic mold release device:
  • Servo-driven mechanism ensures fine-tuning position and speed of mold release.
    HMI system:
  • offers direct parameter setting of 99 functions in the memory.
    Waste-reel device:
  • waste material is automatically reeled, for subsequent chipping on completion of reeling.
    Automatic lubrication system:
  • automatic oil feed for slide parts, totally eliminating part failure resulting from insufficient lubrication.
    HMI system:
  • latest model Siemens control system offers user-friendly operation interface and powerful functionality.
    Alignment mechanism of innovative material:
  • no wrench or spanner required for adjusting material width; fine-tuning achieved quickly and easily.
OPTIONAL FUNCTIONS
    Waste reeling and chipping machine:
  • directly chips waste material, saving space for waste storage as well as manpower for waste material handing.
    Photo-sensor tracing function:
  • detects material position for carrying out trans-mold hole punch.
    Universal voltage:
  • any voltage is available when specified in advance.
    CE Certificate
APPLICABLE MATERIAL
    PS     (Polystyrene)
    PLA   (Poly Lactic Acid)
    ABS   (Acrylonitrile Butadiene Stryrene)
    PE     (Polyethylene)
    PET   (Polyethylene Terephthalate)
    PVC   (Polyvinyl Chloride)
    PP     (Polypropylene)
    HIPS  (High Impact Polystyrene)
    OPS   (Oriented Polystyrene)
    EPS   (Expandable Polystyrene)
    PSP... Other formable plastic sheet.
SPECIFICATIONS
MODEL SL-520
Max. Cutting Size 1100 mm × 400 mm
Max. Material Height 150 mm
Max. Cutting Speed 100 SPM
Max. Cutting Stroke 220 mm
Cutting Force 8 TON
Machine Weight Approx 7,500 KG
※We welcome custom-made orders for special request.
※We reserve the right to modify the specifications of any of the above listed machines without notice.
