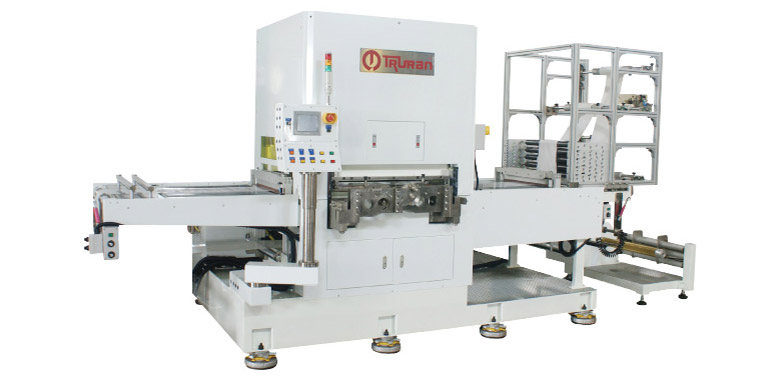

TRC-350CP High-Accuracy Roll-to-Roll Auto Feed Cutting Machine
TRC-350CP
High-Accuracy Roll-to-Roll Auto Feed Cutting Machine
Electronic Catalog
Title Download Link
High-Accuracy Roll-to-Roll Auto Feed Cutting Machine TRC-350CP High-Accuracy Roll-to-Roll Auto Feed Cutting Machine TRC-350CP
FEATURES
    Special Feed Mechanism:
  • designed for the material having different characteristics to achieve automatic machining for the soft materials.
    Well-designed and stabilized Bottom Dead-Point Accuracy:
  • using patented Bottom Dead-Point Mechanism exclusively developed by TRURAN to achieve +/-0.005mm of repeated positioning accuracy.
    High-Accuracy/High-Depth Adjusting Mechanism:
  • used high-accuracy mechanism to achieve fine-tune accuracy for up to 0.01mm (0.001mm is for optional).
    High-efficiency Boosting Circuit:
  • which reduces over 30% of power consumption as compared to conventional circuit.
    Multi-layer material flexibility:
  • to handle over 4 rolls of materials during one machining process to achieve doubled growth of production efficiency.
    Unique Tension Transmission Mechanism:
  • to effectively control the deviation tolerance during material conveying as to alleviate the production Yield Rate.
    Automatic Lubrication Mechanism:
  • The machine uses Automatic Lubrication Mechanism to easing the burden of daily maintenance.
    Waste Recovering Mechanism:
  • After cutting, the machine will recover the waste automatically to save space while enhancing the operability.
APPLICABLE MATERIAL
    Photoelectric Industry:
  • Various high-performance photoelectric films.
    Manufacturing Industry:
  • Various soft materials.
SPECIFICATIONS
MODEL TRC-350CP
Working Area L x W (mm) 550mm x 650mm
Cutting Efficiency 660mm /16times /per min
Motor (HP) 220V 60Hz 3P
Air Pressure Requirement 0.5Mpa
Weight of Main Unit 5500kg
※We welcome custom-made orders for special request.
※We reserve the right to modify the specifications of any of the above listed machines without notice.
